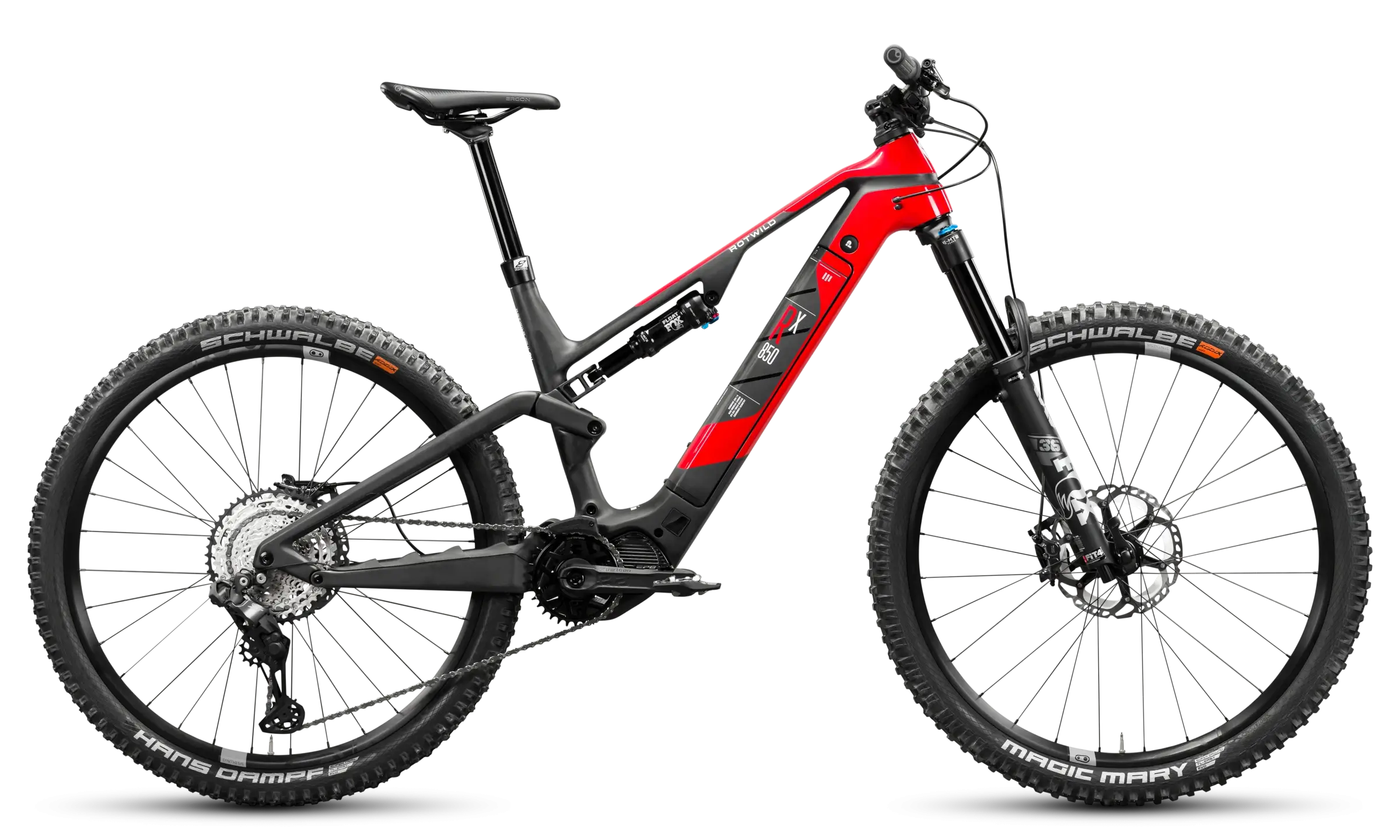

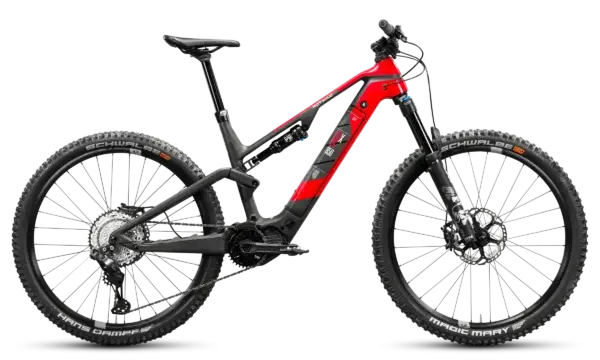

ROTWILD R.X850 CORE

ROTWILD R.X850 CORE

8.490,00€

R.X850 CORE | ROTWILD Bikes
Core
  • Rahmen: Vollcarbon aus High-Modulus-Carbonfasern / handgefertigt
  • Motor: Shimano EP801 / bis zu 85 Nm / 2 Fahrprofile / bis zu 15 Unterstützungsstufen
  • Batterie: IPU820 / 820 Wh / Carbon Gehäuse / 3.560 g / Quick Release Push+ / 4,5 A Ladegerät
  • Federweg Vorne / Hinten: 150 mm / 144 mm
  • Max. Reifenfreiheit Vorne / Hinten: 29x2.6 / 29x2.6
  • Bike Gewicht: 22,0 kg
  • Größen: S / M / L / XL
  • Sonstiges: 8Pins integrierte Sattelstütze, gewichtsoptimiertes Carbon Linkage/ Alu Yoke
  • Zurück zu Builds
Group Logo

Components R.X850 CORE

Frame

  • Frame

    High Modulus Carbon

    Carbon Linkage

  • Rear Shock

    FOX Float DPS Performance

    210 x 52.5 mm / 3-Pos

  • Headset

    ACROS RW735 1.5

  • Fork

    FOX 36 Float Performance

    150 mm / Grip / 3-Pos Micro Adjust

  • Adm. total weight

    ASTM4 - 130 kg

Drive

  • Motor

    SHIMANO EP801

    85 Nm / max. 600 W

  • Crankset

    e*thirteen Plus

    160 mm (S) / 165 mm (M/L) / 170 mm (XL)

  • Chainring

    e*thirteen Direct Mount Chainring

    34 T.

  • Chain guide

    e*thirteen Plus

  • Rear Shifter

    SHIMANO XT 8100

    I-Spec EV

  • Rear derailleur

    SHIMANO XT 8100 SGS

  • Chain

    SHIMANO HG 7100

    12-Speed

  • Cassette

    SHIMANO CS 6100

    10-51 T. / 12-Speed

  • Battery

    IPU820 Carbon - Push+

    820 Wh / 36 V / 21.700 Cell / 3.560 g / QR-Button

Brakes

  • Front Brake

    MAGURA MT5

  • Front Brake Rotor

    MAGURA MDR-P

    203 mm

  • Rear Brake

    MAGURA MT5

    Shiftmix

  • Rear Brake Rotor

    MAGURA MDR-P

    203 mm

Wheels

  • Front Wheel

    CRANKBROTHERS Synthesis Enduro

    31.5 mm Width / 110-15 mm / 6-Bolt

  • Rear Wheel

    CRANKBROTHERS Synthesis Enduro

    29.5 mm Width / 148-12 mm / 6-Bolt

  • Front Tire

    SCHWALBE Magic Mary Evo

    Super Ground / Soft / TLE / 29x2.4

  • Rear Tire

    SCHWALBE Hans Dampf Evo

    Super Trail / Soft / TLE / 29x2.35

Cockpit

  • Handlebar

    e*thirteen Plus

    20 mm Rise / 780 mm Width

  • Stem

    e*thirteen Plus 35

    50 mm Length

  • Grips

    ERGON GD10

    Slim Factory Frozen

Seat

  • Seatpost

    8PINS H01

    up to 200 mm (XL)

  • Saddle

    ERGON SM Sport

Accessories

  • Charger

    ROTWILD - 4.5 A

Geometry

Bike frame image
A B C D E F G H I J K L
Frame SizeSMLXL
ASeat Tube Length (mm)410440470506
BTop Tube Length (mm)597617647675
CHead Tube Length (mm)110110130140
DChain Stay Length (mm)450450450450
EBB Height (mm)345345345345
FBB Drop (mm)30303030
GHead Tube Angle (°)67676767
HSeat Tube Angle (°)75757575
IReach (mm)430450475500
JStack (mm)625625643652
KWheel Base (mm)1200121912531282
LStandover (mm)729729729729
Talla

L, M, S
